當前位置：首頁 > 產品展示 > 氣體濾芯過濾機
| 氣體濾芯過濾機 | ||||
 產品概述

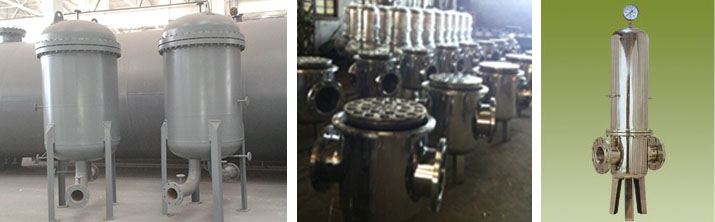

LXK濾芯過濾器是一種高精密的過濾設備，其過濾精度可達0.01um，外殼設計合理、結構緊湊、外型美觀、安裝使用和清洗方便。可用于食品、醫藥、化工、生物發笑、電子環保行業的各類液體的凈化過濾。 殼體材料：304、316L、2205、904、塑料等。 濾芯材質：鈦濾芯、不銹鋼、聚丙烯、聚醚砜、尼龍、聚偏氟乙烯、陶瓷膜、PE .PA 等。 過濾精度：0.01um、0.05um、0.1um、0.22um、0.45um、0.65、1um、3um、5um、10um。 工作壓力：0.5MPa，工作溫度：250度：水通量范圍：0.5-200m 3/h 濾芯接口形式：插入式、卷入式、螺紋式 管路連接方式：卡箍（提供外接接頭）、法蘭（HG20593-97，HG5010-58，PN1.0-1.6Mpa） LXK cartridge filter is a high-precision filtration equipment, its filtering accuracy up to 0.01um, reasonable housing design, compact structure, beautiful appearance, easy installation and cleaning. Can be used in food, pharmaceutical, chemical, biological laugh, clean electronics and environmental protection industries of various types of liquid filtration. Shell material: 304,316L, 2205,904, plastic and so on. Shell material: titanium filter, stainless steel, polypropylene, polyether sulfone, nylon, polyvinylidene fluoride, a ceramic film, PE .PA like. Filtration accuracy: 0.01um, 0.05um, 0.1um, 0.22um, 0.45um, 0.65,1um, 3um, 5um, 10um. Maximum working pressure: 0.5MPa, the maximum operating temperature: 250 degrees: water flux range: 0.5-200m 3 / h Filter Interface Type: Plug-in, involvement, threaded Pipeline connection: clamp (provided external connector), flange (HG20593-97, HG5010-58, PN1.0-1.6Mpa）  | ||||
| ||||
  |
